May 1st, 2020.

The TGB Blade series, with its line-up of mid to high-capacity machines, heads up the next generation of the TGB range of road-going agricultural and utility ATVs.

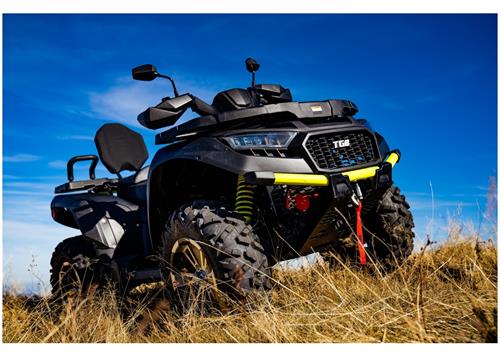

Sitting right at the top of the range is the TGB Blade 1000 LTX, a market-leading road-legal quad boasting the ultimate in ATV technology. It’s equipped with top-spec features as standard and, with an industry-leading five-year manufacturer warranty and a price point under £9000 plus VAT, it really is set apart the competition.

A powerful 997cc V-Twin EFI engine with re-profiled camshafts designed to increase low-end torque and give a more linear power curve heads the high-end specification list. It has front and rear differentials to provide confidence-inspiring on and off-road handling, three-mode adjustable electric power steering and hydraulic shocks.

Upfront, a full LED headlight system is set in a stylish and aggressive front wrap-round body panel, with a removable front grill and strip indicators, all topped off with a roomy and strong front rack. The TGB is a full-size, two-up machine with a comfortable passenger seat which incorporates pillion grab bars, back rest and rear rack. A digital dash, tow hitch and electronic winch complete the Blade 1000 LTX package and it is also fully Euro 4-compliant.

The upgrades fitted to the Blade 1000 LTX give the rider more usable power in all riding conditions, whether that’s tackling rough off-road terrain and coping with severe conditions, working the land, touring the countryside or clocking up the miles on the open road.

At just £8,749.00 excluding VAT, this top-spec quad delivers the goods with a refreshingly lightweight price tab.


Bore/stroke; 92 x 75.0mm
Capacity; 997cc
Clutch; Automatic - CVT
Compression ratio; 10.2
Cooling; Liquid cooled
Drive type; 2/4-wheel drive, selectable
Dry weight mass; 380 kg
Electric power steering; Yes
Electrical outlet connector; DC 12V 10A 120W
Engine braking system (SBS); Standard
Engine Type; 4-stroke V-Twin
Final drive; Shaft
Front brakes; 230mm dual hydraulic disc
Front differential; Electric lock
Front rack (max loading); 30kg
Front shock absorbers; EVO hydraulic 220mm travel
Front/rear suspension; Independent double A-arm
Fuel system; Electronic Fuel Injection
Fuel tank capacity; 23 litres
Gear selection; L/H/N/R/P
Gearbox; Automatic gears
Ground clearance; 295mm
Max power; 86hp (off-road)
Max Torque; 77.7nm
Overall height; 1290 mm
Overall length; 2330 mm
Overall width; 1200 mm
Rear brakes; 210mm dual hydraulic disc
Rear differential; Electric lock
Rear rack (max loading); 50kg
Rear shock absorbers; EVO hydraulic 242mm travel
Start type; Electric
Tow hitch; Yes
Transmission type; V-belt CVT automatic
Unbraked towing capacity; 894kg
Warranty; 5 year manufacturer limited warranty
Winch: Yes

For further product information and machine availability, or to find out how to become a TGB stockist, contact the UK distributor:

T: 01623 708607
